Trunnion-mounted ball valves for pipeline, process, power, oil & gas and other flow control applications where quality, design, safety, and environmental protection are paramount.

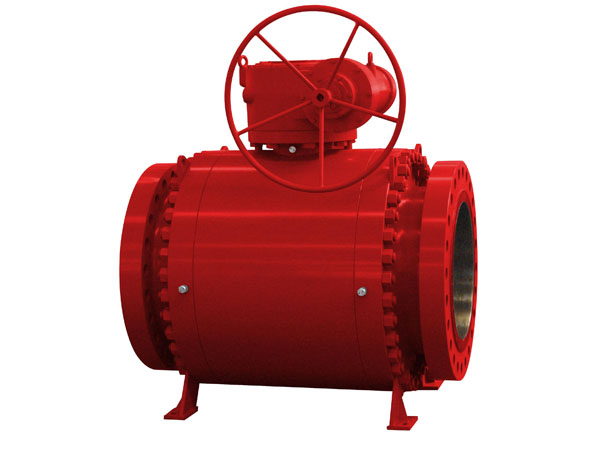

| Wright S Series Flanged Ball Valves using three fixed-type sub-structure designed to meet API6D standards. Large pivot or pivot support plate design ensures the correct central position under high pressure. Operating temperature -46 ℃ ~ 200 ℃, especially for large diameter, high pressure fluid control lines. S series of fixed blocking bleed ball valve with dual functions, and sealant injection system ensures blocked leak from the stem and seat at the next emergency. Wright S series ball through the API 607 fire test |
| ※ Standard specification: |
| Basic Design: API 6D Test: API 6D, API 607 |
| ※ Products Range: |
| Size: 2" ~ 48" Rating: ANSI 150lb ~ 1500lb BodyMaterials: Carbon steel, Stainless steel Trim: A105+ENP, F304, F316, 17-4PH Operation: Handwheel, Gear, Motor, Pneumatic operator |
| ※ Design Feature: |
| Full port or Reduce port Fire safe test certified Double block & bleed Emergency sealant injection Cavity pressure self relief Blowout-proof stem design Anti-static device design |
